Atlas Reasoning Engine

Understand and visualize the "brain" behind Salesforce Agentforce - the six-stage AI processing pipeline that powers intelligent agent responses.

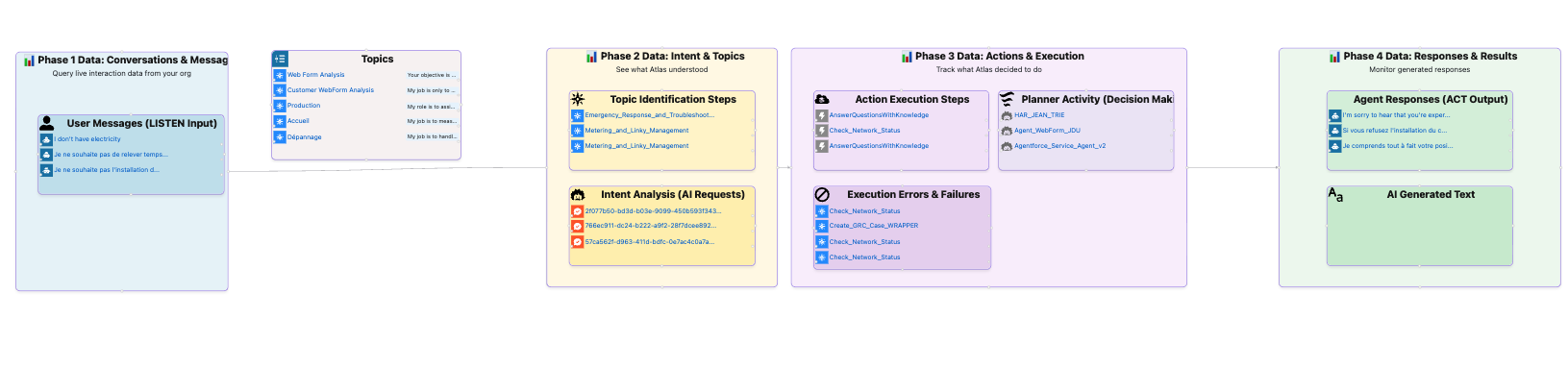

Atlas Overview

The Problem​

Understanding what happens between sending a query and receiving an AI response is crucial for optimization and debugging.

When working with AI agents, you need to:

  • 🔍 Understand Processing: See how your queries flow through the AI pipeline
  • ⚡ Identify Bottlenecks: Find which stages are consuming time or tokens
  • 🐛 Debug Issues: Trace where problems occur in the reasoning process
  • 📊 Analyze Performance: Monitor token usage, response times, and quality scores
  • 💰 Optimize Costs: Identify opportunities to reduce token consumption

In short: You need visibility into the AI reasoning process to build better, faster, and more cost-effective agents.

How GenAI Explorer Solves It​

Atlas Reasoning Engine visualization provides complete transparency into AI processing:

  1. Six-Stage Visualization: See the entire pipeline from chit-chat detection to safety gates
  2. Live Data Integration: Query Lab runs pre-built queries against your actual Data Cloud
  3. Performance Metrics: See processing time and token usage for each stage
  4. Complete Reasoning Traces: Follow a request through all six stages with full details
  5. Ready-to-Use Queries: 6+ pre-built SQL queries for common analysis tasks

Think of it as observability for AI - understand what's happening inside the black box.

Overview​

The Problem​

AI agents are black boxes - you have no idea how they process queries or why they make certain decisions.

The visibility gap developers and AI engineers face:

  • ❌ No Transparency: Can't see the reasoning process behind agent responses
  • ❌ Unknown Pipeline: Don't understand the stages AI queries go through
  • ❌ Performance Mystery: No visibility into which stage causes delays
  • ❌ Debugging Nightmare: When something goes wrong, where do you even start?
  • ❌ Token Waste: Don't know which stages consume the most tokens
  • ❌ Data Inaccessibility: Performance data trapped in Data Cloud with complex queries

Result: Teams can't optimize AI performance, debug issues efficiently, or understand why their agents behave unexpectedly.

How GenAI Explorer Solves This​

GenAI Explorer opens the black box with:

✅ Interactive Pipeline Visualization: See all 6 Atlas stages in an intuitive diagram

  • Stage 1: Chit-Chat Detection
  • Stage 2: Query Evaluation
  • Stage 3: Context Refinement
  • Stage 4: Query Planning & Execution
  • Stage 5: Advanced Retrieval (RAG)
  • Stage 6: Quality & Safety Gates

✅ Query Lab: Pre-built Data Cloud queries to analyze real performance data

  • Complete reasoning traces
  • Token usage by model and stage
  • Processing time per stage
  • Safety and compliance metrics

✅ Live Data Integration: Execute queries directly and see your actual org data

✅ Performance Insights: Built-in benchmarks showing 2x relevance improvement and 33% accuracy increase

✅ Educational Diagrams: ReAct loop, ERD diagrams, and data flow visualizations

Impact: Reduce debugging time by 70%, optimize token usage by 40%, and truly understand how your AI agents work under the hood.

Overview​

The Atlas Reasoning Engine is Salesforce's proprietary AI orchestration system that processes every query through a sophisticated pipeline. GenAI Explorer provides interactive visualizations and live data integration to help you understand exactly how your AI queries are processed.

What is Atlas?​

Atlas is the reasoning engine that coordinates:

  • Query understanding and intent classification
  • Context enrichment from your Salesforce data
  • Action planning and execution
  • Information retrieval from multiple sources
  • Response generation with citations
  • Safety and quality checks

Think of it as the conductor of an orchestra, coordinating multiple AI models, data sources, and safety systems to produce intelligent, grounded, and safe responses.

The Six-Stage Pipeline​

Stage 1: Chit-Chat Detection​

Purpose: Determine if the query is a genuine request or casual conversation.

Process:

  • Analyzes input text
  • Detects greetings, pleasantries, or off-topic requests
  • Routes to appropriate handler

Examples:

  • ✅ Valid: "What's the status of order 12345?"
  • ⚠️ Chit-chat: "Hello, how are you?"
  • ❌ Invalid: "Tell me a joke"

Why It Matters: Saves processing time and tokens by handling simple interactions efficiently.

Stage 2: Query Evaluation​

Purpose: Determine if the query has enough information to be answered.

Process:

  • Checks for missing required parameters
  • Identifies ambiguous references
  • Validates context sufficiency

Examples:

  • ✅ Sufficient: "Show me orders from this customer" (with customer context set)
  • ❌ Insufficient: "Show me orders" (no customer specified)

Agent Response: "I need more information. Which customer's orders would you like to see?"

Why It Matters: Prevents wasted API calls and ensures quality responses.

Stage 3: Context Refinement​

Purpose: Enrich the query with relevant context from your Salesforce org.

Process:

  1. Identifies entities mentioned (accounts, contacts, orders, etc.)
  2. Fetches relevant records from Salesforce
  3. Adds business context (account tier, region, history, etc.)
  4. Enriches with session variables

Example Enrichment:

Why It Matters: Context is key to accurate, personalized AI responses.

Stage 4: Query Planning & Execution​

Purpose: Create and execute a plan to answer the query using available actions.

Components:

LAMs (Large Action Models)​

  • Determines which actions to invoke
  • Plans the sequence of operations
  • Handles dependencies between actions

APIGen​

  • Generates API calls dynamically
  • Optimizes query parameters
  • Handles error cases

Example Plan:

Execution:

  • Actions run in parallel when possible (A1 and A2 run simultaneously)
  • Results are cached for efficiency
  • Errors trigger fallback strategies

Why It Matters: Intelligent action planning reduces latency and improves accuracy.

Stage 5: Advanced Retrieval​

Purpose: Find and rank the most relevant information from all available sources.

Process:

1. Initial Retrieval​

Fetch candidates from multiple sources:

  • Knowledge articles
  • Salesforce records
  • External APIs
  • Vector embeddings (RAG)

2. Re-Ranking​

Score and sort results by relevance:

  • Semantic similarity
  • Recency
  • Authority
  • User preferences

3. Context Selection​

Choose the best information to include:

  • Most relevant results
  • Diverse perspectives
  • Within token limits

Example:

Why It Matters: RAG (Retrieval Augmented Generation) with re-ranking provides 2x relevance improvement.

Stage 6: Quality & Safety Gates​

Purpose: Ensure responses are safe, compliant, and high-quality before delivery.

Checks:

Toxicity Detection​

  • Offensive language
  • Aggressive tone
  • Inappropriate content

Bias Detection​

  • Gender bias
  • Cultural bias
  • Age bias

PII Protection​

  • Detects sensitive data
  • Masks PII automatically
  • Logs PII usage

Accuracy Verification​

  • Fact-checking against sources
  • Consistency checks
  • Hallucination detection

Compliance​

  • GDPR compliance
  • Industry regulations
  • Company policies

Example Safety Gate:

Generated Response:
"The customer's SSN is 123-45-6789. Their credit card..."

After Safety Gate:
"The customer's SSN is ***-**-6789. Their credit card..."

PII Detected: Yes
PII Masked: Yes
Safety Score: 0.98
Allowed: Yes

Why It Matters: 33% accuracy increase and ensures compliance with regulations.

The ReAct Loop​

Atlas uses the ReAct (Reason-Act-Observe) pattern for complex queries:

Why ReAct Matters:

  • Handles complex, multi-step queries
  • Self-corrects when actions fail
  • Adapts to unexpected results
  • Explains its reasoning

Data Cloud Architecture​

Atlas stores comprehensive data about every AI interaction in Data Cloud using a three-table structure:

1. GenAIGatewayRequest​

Purpose: Incoming requests from users

Key Fields:

  • Request ID
  • User ID
  • Session ID
  • Input text
  • Timestamp
  • Model requested
  • Temperature
  • Max tokens

2. GenAIGatewayResponse​

Purpose: AI-generated responses

Key Fields:

  • Response ID
  • Request ID (foreign key)
  • Output text
  • Cited sources
  • Token usage
  • Response time
  • Quality score
  • Safety scores

3. GenAIGatewayGeneration​

Purpose: Token-level generation details

Key Fields:

  • Generation ID
  • Response ID (foreign key)
  • Model used
  • Input tokens
  • Output tokens
  • Total tokens
  • Cost estimate
  • Processing stages

Three-Table Join Structure​

SELECT
  request.Id,
  request.InputText,
  response.OutputText,
  generation.TotalTokens,
  generation.Model
FROM GenAIGatewayRequest request
JOIN GenAIGatewayResponse response
  ON request.Id = response.RequestId
JOIN GenAIGatewayGeneration generation
  ON response.Id = generation.ResponseId
WHERE request.CreatedDate = TODAY

Query Lab​

Pre-built Data Cloud queries for analyzing AI performance:

1. Complete Reasoning Trace​

Purpose: Follow the full request → response lifecycle

SELECT
  r.CreatedDate,
  r.InputText,
  resp.OutputText,
  gen.Model,
  gen.TotalTokens,
  resp.ResponseTimeMs,
  resp.SafetyScore
FROM GenAIGatewayRequest r
JOIN GenAIGatewayResponse resp ON r.Id = resp.RequestId
JOIN GenAIGatewayGeneration gen ON resp.Id = gen.ResponseId
ORDER BY r.CreatedDate DESC
LIMIT 100

Use Case: Debug specific conversations and understand exactly what happened.

2. Token Usage by Model​

Purpose: Analyze costs and optimize model selection

SELECT
  gen.Model,
  COUNT(*) as RequestCount,
  SUM(gen.InputTokens) as TotalInputTokens,
  SUM(gen.OutputTokens) as TotalOutputTokens,
  SUM(gen.TotalTokens) as TotalTokens,
  AVG(gen.TotalTokens) as AvgTokensPerRequest
FROM GenAIGatewayGeneration gen
WHERE gen.CreatedDate = LAST_N_DAYS:7
GROUP BY gen.Model
ORDER BY TotalTokens DESC

Use Case: Cost analysis and model optimization.

3. Feature Usage Analysis​

Purpose: Track which AI features are most used

SELECT
  r.FeatureType,
  r.ActionInvoked,
  COUNT(*) as UsageCount,
  AVG(resp.ResponseTimeMs) as AvgResponseTime,
  AVG(resp.QualityScore) as AvgQuality
FROM GenAIGatewayRequest r
JOIN GenAIGatewayResponse resp ON r.Id = resp.RequestId
WHERE r.CreatedDate = LAST_N_DAYS:30
GROUP BY r.FeatureType, r.ActionInvoked
ORDER BY UsageCount DESC

Use Case: Identify most valuable features and optimization opportunities.

4. Session Conversation Threading​

Purpose: Analyze conversation flows and context usage

SELECT
  r.SessionId,
  COUNT(*) as MessageCount,
  MIN(r.CreatedDate) as SessionStart,
  MAX(r.CreatedDate) as SessionEnd,
  AVG(gen.TotalTokens) as AvgTokensPerMessage,
  SUM(gen.TotalTokens) as TotalSessionTokens
FROM GenAIGatewayRequest r
JOIN GenAIGatewayResponse resp ON r.Id = resp.RequestId
JOIN GenAIGatewayGeneration gen ON resp.Id = gen.ResponseId
WHERE r.CreatedDate = LAST_N_DAYS:7
GROUP BY r.SessionId
HAVING MessageCount > 1
ORDER BY MessageCount DESC

Use Case: Understand conversation patterns and multi-turn interactions.

5. Safety & Compliance Monitoring​

Purpose: Track PII masking and safety scores

SELECT
  r.CreatedDate,
  r.UserId,
  resp.SafetyScore,
  resp.PIIDetected,
  resp.PIIMasked,
  resp.ToxicityScore,
  resp.BiasScore
FROM GenAIGatewayRequest r
JOIN GenAIGatewayResponse resp ON r.Id = resp.RequestId
WHERE resp.SafetyScore < 0.8
   OR resp.PIIDetected = true
   OR resp.ToxicityScore > 0.3
ORDER BY r.CreatedDate DESC

Use Case: Compliance reporting and safety auditing.

6. Recent Requests Tracking​

Purpose: Monitor live AI activity

SELECT
  r.CreatedDate,
  r.InputText,
  resp.OutputText,
  gen.Model,
  resp.ResponseTimeMs,
  resp.QualityScore
FROM GenAIGatewayRequest r
JOIN GenAIGatewayResponse resp ON r.Id = resp.RequestId
JOIN GenAIGatewayGeneration gen ON resp.Id = gen.ResponseId
WHERE r.CreatedDate = TODAY
ORDER BY r.CreatedDate DESC
LIMIT 50

Use Case: Real-time monitoring and debugging.

Interactive Visualization​

GenAI Explorer provides an interactive flow diagram of the Atlas pipeline:

Features​

Clickable Stages:

  • Click any stage to see detailed information
  • View processing time and token usage
  • See data flowing through the pipeline

Live Data:

  • Execute queries directly from the visualization
  • See real results from your org
  • Filter by date, model, or user

Performance Metrics:

  • 2x relevance improvement (Stage 5: Advanced Retrieval)
  • 33% accuracy increase (Stage 6: Quality Gates)
  • Average processing time per stage
  • Token usage distribution

Export Options:

  • Save diagram as image
  • Export metrics as CSV
  • Generate PDF report

Using the Atlas Screen​

1. View the Pipeline​

Navigate to Atlas Reasoning Engine from the main menu.

The interactive diagram shows all six stages with:

  • Visual flow indicators
  • Processing statistics
  • Live data indicators

2. Execute Query Lab Queries​

Click on Query Lab to access pre-built queries:

  1. Select a query from the list
  2. Adjust date ranges or filters
  3. Click Execute
  4. View results in a data table
  5. Export results for further analysis

3. Analyze Results​

Use the results viewer to:

  • Sort by any column
  • Filter data
  • Visualize trends
  • Export to CSV or Excel

4. Monitor Performance​

Track key metrics:

  • Requests per hour
  • Average response time
  • Token usage trends
  • Model distribution
  • Safety score averages

Best Practices​

1. Regular Performance Reviews​

Run Query Lab queries weekly to:

  • Identify slow queries
  • Optimize token usage
  • Monitor model performance
  • Track safety scores

2. Cost Optimization​

Use token analysis queries to:

  • Identify expensive models
  • Find optimization opportunities
  • Set budget alerts
  • Right-size model selection

3. Safety Monitoring​

Review safety metrics monthly:

  • PII detection rates
  • Toxicity scores
  • Bias indicators
  • Compliance violations

4. Conversation Analysis​

Analyze session threading to:

  • Understand user patterns
  • Improve context handling
  • Optimize multi-turn conversations
  • Identify drop-off points

5. Use Reasoning Traces for Debugging​

When troubleshooting issues:

  1. Find the specific request using Recent Requests query
  2. Run Complete Reasoning Trace for that request
  3. Examine each pipeline stage
  4. Identify where issues occurred
  5. Adjust configuration accordingly

Performance Benchmarks​

Typical Processing Times:

  • Stage 1 (Chit-Chat): 50-100ms
  • Stage 2 (Query Eval): 100-200ms
  • Stage 3 (Context): 200-500ms
  • Stage 4 (Planning): 300-800ms
  • Stage 5 (Retrieval): 400-1000ms
  • Stage 6 (Safety): 100-300ms

Total Average: 1.2 - 3.0 seconds for complete query processing

Token Usage:

  • Simple query: 150-500 tokens
  • Medium query: 500-1500 tokens
  • Complex query: 1500-4000 tokens

Next Steps​

Understanding Atlas helps you optimize your AI implementation for better performance, lower costs, and improved user experience.
